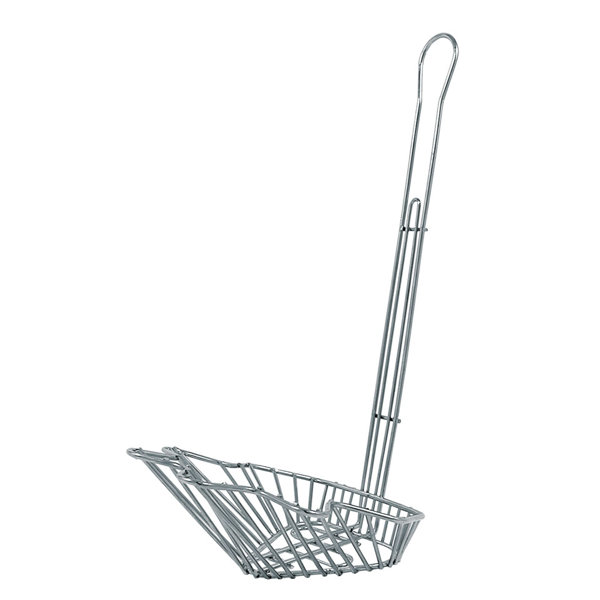

Winco TB-22, 18-Inch Triangle Taco Salad Bowl Basket, Deep Fryer Taco Holder Basket, Commercial Heavy-Duty Taco Fry Basket with Handle 4.0 out of 5 stars 25 $18.04 $ 18.
Form for frying tortillas to make fried tacosWinco TB-22, 18-Inch Triangle Taco Salad Bowl Basket, Deep Fryer Taco Holder Basket, Commercial Heavy-Duty Taco Fry Basket with Handle. 4.0 out of 5 stars 25. A wide variety of taco shell fry basket options are available to you, such as sustainable, stocked. You can also choose from metal taco shell fry basket, as well as from caterers & canteens, restaurants, and specialty stores taco shell fry basket, and whether taco shell fry basket is ce / eu, sgs, or fda.
Download PDFInfo
- Publication number
- US2506305A US2506305AUS762477AUS76247747AUS2506305AUS 2506305 AUS2506305 AUS 2506305AUS 762477 AUS762477 AUS 762477AUS 76247747 AUS76247747 AUS 76247747AUS 2506305 AUS2506305 AUS 2506305A
- Authority
- US
- United States
- Prior art keywords
- tacos
- base
- Maldonado Juvencio
- Original Assignee
- Application filed by Maldonado JuvenciofiledPriority to US762477ApriorityApplication grantedgrantedPublication of US2506305ApublicationAnticipated expirationlegal-statusExpired - Lifetimelegal-statusCurrent
- title239000004519greaseSubstances0.000238000010276constructionMethods0.000235000013372meatNutrition0.000241000208834AdoxaceaeSpecies0.000241001151575Fritillaria eduardiiSpecies0.000235000014541cooking fatsNutrition0.000239000003925fatSubstances0.000235000019197fatsNutrition0.000235000013305foodNutrition0.000238000004519manufacturing processMethods0.000239000000463materialsSubstances0.000239000002184metalsSubstances0.000238000000034methodsMethods0.000230000004048modificationEffects0.000238000006011modification reactionsMethods0.000
- A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
- A47J37/00—Baking; Roasting; Grilling; Frying
- A47J37/1295—Frying baskets or other food holders
- 1947-07-21USUS762477Apatent/US2506305A/ennot_activeExpired - Lifetime
Links
Description
INVENTOR. Juvencio BY I i 5. 4TT0HNEY J. MALDONADO FORM FOR FRYING TORTILLAS TO MAKE FRIED TACOS Flled July 21 1947 M L w i May 2, 1950 Patented May 2, 1950 FORM FOR FRYING TORTILLAS TO MAKE FRIED TACOS J uvencio Maldonado, New York, N. Y.
Application July 21, 1947, Serial No. 762,477
4 Claims.
The present invention relates to forms for frying tortillas for tacos and it consists in the combinations, constructions and arrangements of parts herein described and claimed.
Wire Basket For Frying
Generally, the invention comprises a form upon which a plurality of tortilla may be folded and locked in position and thereupon dipped in cooking fat or the like for a s-uflicient length of time to fry the tortilla, the frame thereafter being removed from the fat and the pieces of tortilla filled with meat or the like and thereafter called tacos. The construction of the form includes a frame having a pair of opposed open sides, handle members conforming in shape to the side of the frame and a portion of the top of the frame and thereafter extending upwardly to form a handle.
The upwardly extending portions are provided with outwardly extending ridges and a ring is adapted to be forced downwardly over the two upwardly extending handle portions against the faces of the ridges to lock the same together. Within the casing is a vertically arranged zig-zag mold over each separate contour of which is adapted to be placed a piece of dough, as aforesaid.
It is, accordingly, an object of the invention to provide a mold which is simple in construction, inexpensive to manufacture and efficient in operation.
.jpg "4 slot taco frying basket tray")
A further object of the invention is the provision of a mold for tortilla dough in which a plurality of tortilla may be fried simultaneously.
A further object of the invention is the provision of a device of the character described in which the mold form consists of a single piece of metal.
A further object of the invention is the provision of a novel combined locking and handle construction.
For further comprehension of the invention and of the objects and advantages thereof, reference will be had to the following description and accompanying drawing, and to the appended claims in which the various novel features of the invention are more particularly set forth.
In the accompanying drawing forming a material part of this disclosure:
Fig. 1 is a perspective view of an embodiment of the invention.
Fig. 2 is a sectional view taken along line 22 of Fig. 3.
Fig. 3 is a sectional view taken along line 3-3 of Fig. 1.
Fig. 4 is a sectional view taken along line 4--4 of Fig. 2.
Fig. 5 is a fragmentary enlarged sectional view taken substantially along line 55 of Fig. 1.
Referring more particularly to the drawing, there is illustrated therein a form for frying tortillas to make tacos, comprised of a frame member having a top H], side members H and I2 and a bottom H3. The side members are provided with a plurality of inwardly extending slots M. The bottom l3 along the edges of the open sides of the frame is provided with a pair of arms l5 and I6 which are hinged as indicated at ll and i3, respectively, and extend upwardly to partially enclose the open sides of the frame and thence inwardly, as indicated at l9 and 20, and thence upwardly as indicated at 2 and 22, respectively. One of the arms l5, terminates in a beaded portion 23 and both upward extensions 2 and 22 are provided with outwardly extending ridges 24 and 25, respectively.
4 Slot Taco Frying Basket Tray
Attached to the bottom portion i3 of the frame by means of rivets 26 or the like is a vertically extending single piece zig-zag mold 2'! which is likewise attached to the top portion In of the frame by means of rivets 28 or the like.
The mold 21, because of its zig-zag shape, results in a plurality of outwardly extending single dough receiving portions 29. A ring 30 of the general rectangular shape is adapted to be normally held upon the extension 2 by means of the beaded portion 23 but may be slidably placed over the extension 22 and forced downwardly upon the two extension members and the ridges 24 and 25 thereof to lock the same together.
In operation, it will be seen that the handle members If: and I6 are firs-t unlocked and moved outwardly from the frame and that thereafter the tortilla is placed over the individual mold forms 29. The ends I5 and I6 are then brought together and the ring 30 forced downwardly over the portions 2 and 22 to frictionally lock the same together whereupon the portions 2 and 22 may be used as a handle to immerse the frame and its associated parts into grease for a period long enough tofry the tortilla. Thereafter, the device may be lifted from the grease, the slots I4 and the open sides of the mold 21 allowing the grease to rapidly drain from the unit, whereupon the handle portions 2 and 22 may be unlocked and opened and the tortilla may be removed from the mold and filled with meat or other food.
While I have illustrated and described the preferred embodiments of my invention, it is to 3 be understood that I do not limit myself to the precise constructions herein disclosed and the right is reserved to all changes and modifications coming within the scope of the invention as defined in the appended claims.
Having thus described my invention, What I claim as new, and desire to secure by United States Letters Patent is:
l. A device of the character described, comprising a base member and a top member, side members integral with said base and top members, a reversely folded member extending vertically between said side members and attached to said base and top members, said reversely folded member forming a plurality of dough receiving compartments each having an :apening at one end thereof, and a pair of handles hingedly attached to said base member and extending vertically past the open ends of said dough receiving compartments.
.2. A device of the character .described comprising a base member and a top member, side members shaving a :plurality of vertically spaced slots therein, said side members being integral with said top and base members, a reversely folded member extending vertically between said side members 'a-ndattached to said top and base members, said reversely folded member forming a plurality of zdeugh receiving compartments open at alternately :opposite sides thereof, and a pair of handles hingedly attached to said base member andaextend-ing vertically past the alternately open and closed sides .of said dough receiving compartments.
3. A device of the character described, comprising a base member and a top member, side members integral with said base and top members and having vertically spaced slots therein, a reversely .tolded member extending vertically between said side members and attached .to said top and base members, said reversely folded member iorming a plurality of dough receiving compartments cpenat alternately opposite sides thereof, said dough receiving compartments registering with said slots to permit the drainage of grease therefrom, and handles hingedly attached to said base member and extending vertically past the alternately open and closed sides of said dough receiving compartments.
4. A device of the character described, comprising a base member and a top member, side members integral with said base and top members, said side members being provided with vertically spaced slots therein, and a reversely folded member extending vertically between said side membersand attached to said base and top members, said reversely folded member forming a plurality of dough receiving compartments open at alternately opposite sides thereof, said dough receiving compartments registering with said vertically spaced slots to permit the drainage of grease therefrom, handles hingedly attached to said base member and extending vertically past said alternately epen and :closed dough receiving compartments, and means locking said handles in position over said dough receiving compartments to retain the dough in said compartments during the frying process,
J UVENCIO MALDON ADO.
REFERENCES CITED The following references are of record in the file of this patent:
UNITED STATES PATENTS Number Name Date 285,864 Whyte .e. Oct. 2, 1883 567,400 Lee Sept. 8, 1896 573,574 Davies Dec. 22, .1896 598,801 Minter Feb. '8, 1898 680,014 Talbot Aug. 1, 1899 883,432 Traeger Mar. '31, 1908 894,974 Nicodemus Aug. 4, 1908 1,020,004 Wishman Mar. 12, 1912 1,129,635 Burke et al Feb. 23, 1915
